 VIP-884-KMV |
   |
Description:The VIP-884 "MegaMux""KVM
Splitter / Multiplexer allows up to four workstations, each consisting
of a keyboard, PS/2 mouse and one or more monitors, to share
local access to one PC. It is compact in design, easy to install
and operate, and is available in a variety of standard configurations
including Dual
Video (2 video outputs on
the PC) models.
The unique video architecture
and scalability of
this KVM Splitter / Multiplexer allow it to be easily configured
to handle PCs with as many as four video outputs, on a special
order basis. The VIP-884 utilizes Vetra's
advanced keyboard and mouse emulation technology, which provides
error free boot up and mouse driver loading to the connected
PC. It is compatible with all popular keyboards and mice including
Microsoft IntelliMouse, and operates transparently with all PCs, PC operating systems and applications. Only one workstation may access
the PC at any given time. This prevents unwanted input from other
workstations as might occur from accidental keystrokes or a bump
to the mouse. Workstation selection has two modes. The default
mode utilizes a 5 second time out feature that monitors all connected
workstations for keyboard or mouse input. The first workstation
to generate keyboard or mouse input "seizes" the PC
and becomes the "active station". It remains "active"
until no further keyboard or mouse input is detected for a period
of 5 seconds, at which time it relinquishes control of the PC
and the whole process starts again. The second mode provides
a lock and release feature which allows the user of an "active
station" to lock out (3 taps on the left Shift key) the
other workstations, for uninterrupted input to the PC, and then
release control (3 taps on the right Shift key) when finished
so the other workstations are available once again to the PC. All Vetra KVM Splitters and Multiplexers are designed and manufactured in the USA for use around the world for enterprise mission-critical applications and are backed by a Limited 3 Year Warranty. For more information on this product or our complete line of KVM solutions, please contact us at sales@vetra.com |
Features:
|

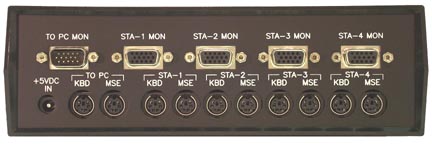

 REAR VIEW of VIP-884-KMV |
|
|
Connections:PC to MegaMux - Standard male-male extension cables
are used to connect the MegaMux to the keyboard and mouse ports
of the PC, and standard HDD15 Male-female video cables are used
to connect to the video ports of the PC. These are provided with
the unit. Specifications:Dimensions for the VIP-884-KM and VIP-884-KMV KVM Splitter / Multiplexer are 2.63 in H x 8.08 in W x 6.32 in D (6.68 cm x 20.52 cm x 16.05 cm). Dimensions for the VIP-884-KMV2 KVM Splitter / Multiplexer are 3.38 in H x 8.08 in W x 6.32 in D (8.59 cm x 20.52 cm x 16.05 cm). All housings are molded of black GE Cycolac-T, a high impact ABS material, and are internally shielded with an acrylic nickel coating for RFI attenuation. Front panels and rear panels are fabricated from .062 in thick aluminium and finished with low gloss paint. FCC and CE marked. Shipping weight for all models of the VIP-884 is 4 lbs. |
| Environmental |
Operating Temp: Storage Temp: |
5 to 104 deg. F
(-15 - 40 deg. C) -4 to 122 deg. F (-20 - 50 deg. C) |
| Supported Hardware |
Computer: Video Monitors: Maximum Resolution: Peripherals: |
IBM PC/AT, PS/2
and 100% compatibles VGA, SVGA up to 1600 x 1200 at 75 Hz AT & PS/2 keyboards, PS/2 mice |
| MegaMux is a trademark of Vetra Systems Corporation Copyright © 1995 - 2003 by Vetra Systems Corporation All Rights Reserved | ||
