Vetra Systems Corporation
KVM solutions that work


Application Note V-111
USB-331-OEM & USB-335-OEM Dimensional Specifications

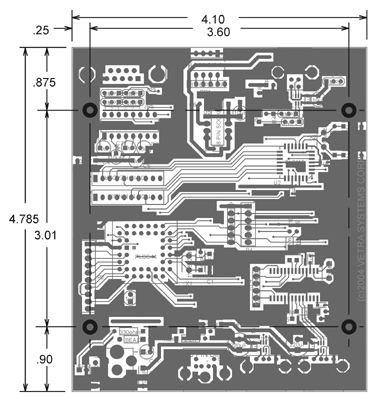

This Application Note provides dimensional specifications for the USB-331-OEM and USB-335-OEM "SmartPipe" products and is intended as a reference for those who wish to mount or daughter board the USB-33X onto their product. The information provided on the drawing includes printed circuit board outline dimensions, and mounting hole locations and dimensions. This application note does not specify signal data, or voltage and current requirements, as these are generally supplied in the specification section of the product page, or on the instruction sheets provided with the unit and available online from the product page.







Note: All dimensions are in inches. Mounting holes (4 places) are .125 DIA. thru. The view provided is of the component side or top layer view.

To go to the USB-331 product page, please click here.

To go to the USB-335 product page, please click here.

User instructions for the USB-331

User instructions for the USB-335

As with all our OEM products, if you have any questions as to the power pin configuration or specifications that we require, please make sure to call our Tech Support department before powering your unit. Products that are damaged, or do not perform properly as a result of improper powering, are not covered under our warranty.
